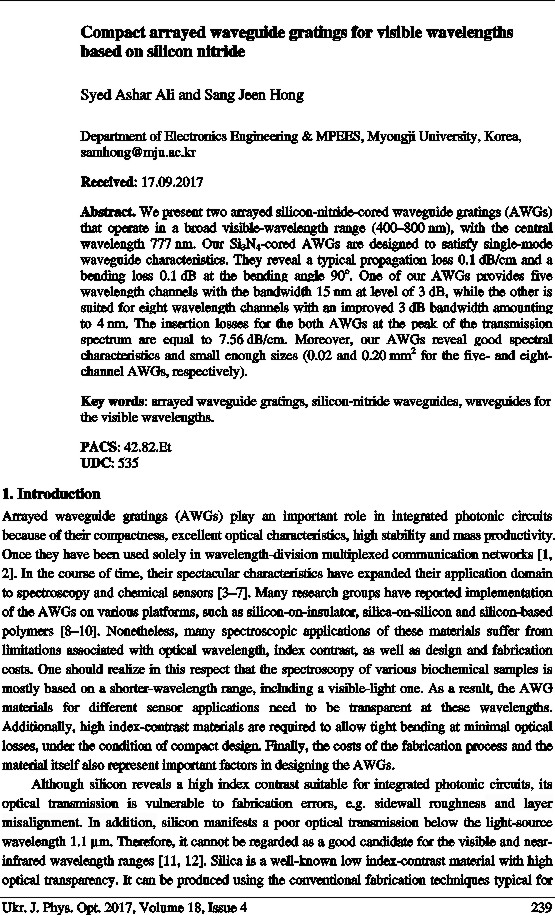

Compact arrayed waveguide gratings for visible wavelengths based on silicon nitride

Syed Ashar Ali and Sang Jeen Hong

Department of Electronics Engineering & MPEES, Myongji University, Korea, samhong@mju.ac.kr

Download this article

Abstract. We present two arrayed silicon-nitride-cored waveguide gratings (AWGs) that operate in a broad visible-wavelength range (400–800 nm), with the central wavelength 777 nm. Our Si3N4-cored AWGs are designed to satisfy single-mode waveguide characteristics. They reveal a typical propagation loss 0.1 dB/cm and a bending loss 0.1 dB at the bending angle 90o. One of our AWGs provides five wavelength channels with the bandwidth 15 nm at level of 3 dB, while the other is suited for eight wavelength channels with an improved 3 dB bandwidth amounting to 4 nm. The insertion losses for the both AWGs at the peak of the transmission spectrum are equal to 7.56 dB/cm. Moreover, our AWGs reveal good spectral characteristics and small enough sizes (0.02 and 0.20 mm2 for the five- and eight-channel AWGs, respectively).

Keywords: arrayed waveguide gratings, silicon-nitride waveguides, waveguides for the visible wavelengths

PACS: 42.82.Et
UDC: 535
Ukr. J. Phys. Opt. 18 239-248
doi: 10.3116/16091833/18/4/239/2017
Received: 31.10.2017

Анотація. Ми представляємо дві кремнієво-нітридові хвилеводні ґратки (ХҐ), які працюють у широкому видимому діапазоні довжин хвиль 400 – 800 нм на центральній довжині хвилі 777 нм. ХҐ із серцевинами Si3N4 сконструйовано так, аби забезпечити характеристики одномодового режиму хвилеводу. Вони виявляють типові втрати поширення 0,1 дБ/см і втрати на згинах 0,1 дБ при куті згину 90°. Одна з наших ХҐ забезпечує п’ять каналів із шириною смуги пропускання 15 нм на рівні 3 дБ, а інша – вісім каналів із поліпшеною смугою пропускання 4 нм на рівні 3 дБ. Втрати на введення для обох ХҐ дорівнюють 7,56 Б/см на піку спектра пропускання. Крім того, наші ХҐ виявляють хороші спектральні характеристики і досить малі розміри (0,02 і 0,20 мм2 відповідно для п’яти- та восьмиканальної ХҐ).
REFERENCES
  1. Takahashi H, Suzuki S, Kato K and Nishi I, 1990. Arrayed-waveguide grating for wavelength division multi/demultiplexer with nanometre resolution. Electron. Lett. 26: 87–88. doi:10.1049/el:19900058
  2. Dragone C, 1991. An N*N optical multiplexer using a planar arrangement of two-star couplers. EEE Photon. Technol. Lett. 3: 812–815. doi:10.1109/68.84502
  3. Ryckeboer E, Gassenq A, Muneeb M, Hattasan N, Pathak S, Cerutti L, Rodriguez J B, Tournié E, Bogaerts W, Baets R and Roelkens G, 2013. Silicon-on-insulator spectrometers with inte-grated GaInAsSb photodiodes for wide-band spectroscopy from 1510 to 2300 nm. Opt. Express. 21: 6101–6108. doi:10.1364/OE.21.006101
  4. Piels M, Bauters J F, Davenport M L, Heck M J and Bowers J E, 2014. Low-loss silicon nitride AWG demultiplexer heterogeneously integrated with hybrid III–V/silicon photodetectors. J. Lightwave Technol. 32: 817–823. doi:10.1109/JLT.2013.2286320
  5. Kodate K and Komai Y, 2008. Compact spectroscopic sensor using an arrayed waveguide grating. J. Optics A: Pure Appl. Opt. 10: 044011. doi:10.1088/1464-4258/10/4/044011
  6. Gatkine P, Veilleux S, Hu Y., Bland-Hawthorn J and Dagenais M, 2017. Arrayed waveguide grating spectrometers for astronomical applications: new results. Opt. Express. 25: 17918–17935. doi:10.1364/OE.25.017918
  7. Barbarin Y, Lefrançois A, Magne S, Chuzeville V, Balbarie M, Jacquet L, Sinatti F, Osmont A and Luc J, 2017, Dynamic measurements of physical quantities in extreme environment using fiber Bragg grating. In: 25th Optical Fiber Sensors IEEE Conference, 2017. pp. 1–4.
  8. Cheben P, Schmid J H, Delâge A, Densmore A, Janz S, Lamontagne B, Lapointe J, Post E, Waldron P and Xu D X, 2007. A high-resolution silicon-on-insulator arrayed waveguide rating microspectrometer with sub-micrometer aperture waveguides. Opt. Express. 15: 2299–2306. doi:10.1364/OE.15.002299
  9. Okamoto K, Moriwaki K and Suzuki S, 1995. Fabrication of 64*64 arrayed-waveguide grating multiplexer on silicon. Electron. Lett. 31: 184–186. doi:10.1049/el:19950133
  10. Diemeer J, Ramsamoedj R and Smit K, 1996. Polymeric phased array wavelength multiplexer operating around 1550 nm. Electron. Lett. 32: 1132–1133. doi:10.1049/el:19960736
  11. Martens D, Subramanian A Z, Pathak S, Vanslembrouck M, Bienstman P, Bogaerts W and Baets R, 2015. Compact silicon nitride arrayed waveguide gratings for very near-infrared wavelengths. IEEE Photon. Technol. Lett. 27: 137–140. doi:10.1109/LPT.2014.2363298
  12. Rahim A, Ryckeboer E, Subramanian A Z, Clemmen S, Kuyken B, Dhakal A, Raza A, Hermans A, Muneeb M, Dhoore S and Li Y, 2017. Expanding the silicon photonics portfolio with silicon nitride photonic integrated circuits. J. Lightwave Technol. 35: 639–649. doi:10.1109/JLT.2016.2617624
  13. Suzuki K, Hida Y, Shibata T, Inoue Y, Takahashi H and Okamoto K, 2006. Silica-based arrayed-waveguide gratings for the visible wavelength range. NTT Tech. Rev. 4: 48–52.
  14. Poenar D P, Kee J S, Neuzil P and Yobas L, 2009. The design and fabrication of poly (dimethylsiloxane) single mode rib waveguides for lab-on-a-chip applications. In: Advanced Materials Research (Trans Tech Publications). 74: 51–54.
  15. Kee J S, Poenar D P, Neužil P, Yobaş L and Chen Y, 2010. Design and fabrication of Poly (dimethylsiloxane) arrayed waveguide grating. Opt. Express. 18: 21732–21742. doi:10.1364/OE.18.021732
  16. Hwang S, Lee M, Kim S and Hong S, 2017. Characterization of silicon nitride-cored silicon photonics waveguide material for optical microring resonator. J. Nanoelectron. Optoelectron. (at press).
  17. Stanton E J, Spott A, Davenport M L, Volet N and Bowers J E, 2016, June. Arrayed waveguide grating near 760 nm wavelength for integrated spectral beam combining applica-tions. In: Lasers and Electro-Optics IEEE Conference, 2016. pp. 1–2. doi:10.1364/CLEO_SI.2016.SM1F.1
  18. Hwang S, Lee M, Kim S and Hong S, 2017. Characterization of silicon nitride-cored silicon photonics waveguide material for optical microring resonator. J. Nanoelectron. Optoelectron. (at press).
  19. Elndash A, Mohammed N A, Rashed A N Z, Elndash A and Saad F A, 2009. Estimated optimization parameters of arrayed waveguide grating (AWG) for C-band applications. Int. J. Phys. Sci. 4: 149–155.
