Ukrainian Journal of Physical Optics

Number 2, Volume 7, 2006

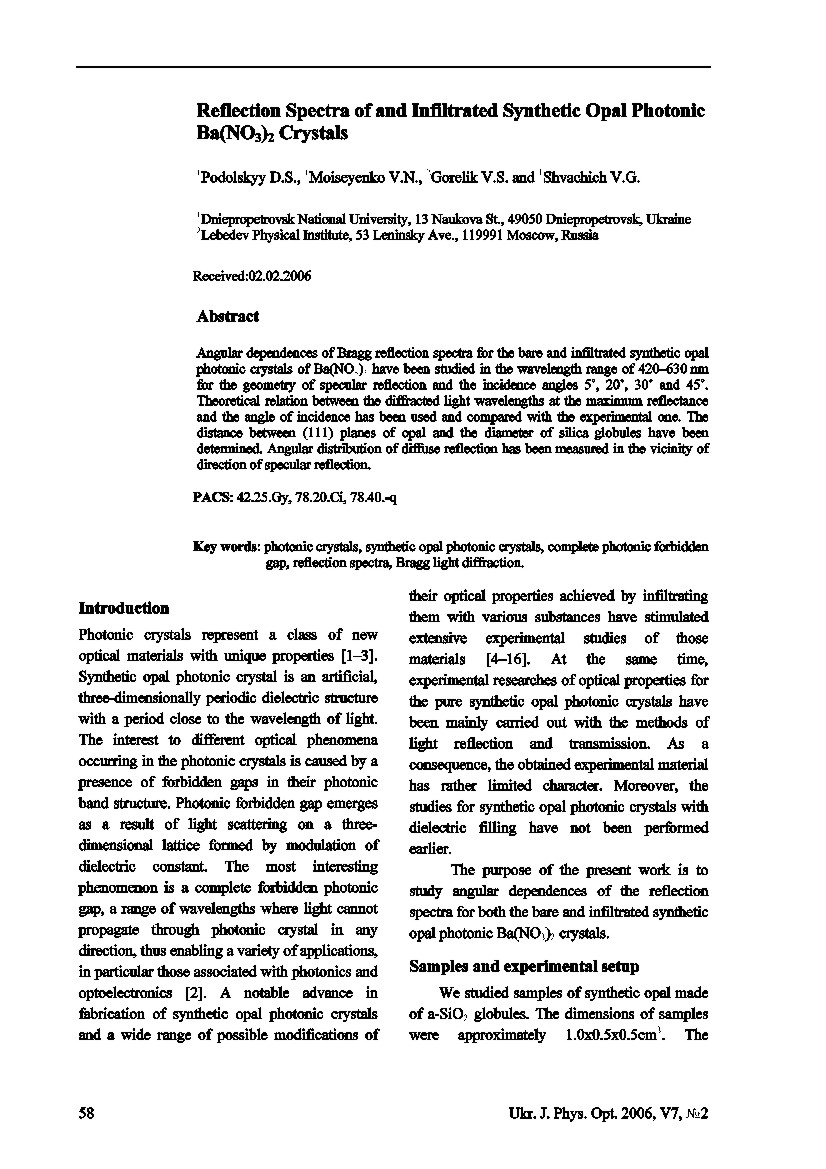

Reflection Spectra of Bare and Infiltrated with Ba(NO3)2 Synthetic Opal Photonic Crystals
¹Podolskyy D.S., ¹Moiseyenko V.N., ²Gorelik V.S., ¹Shvachich V.G.

¹Dniepropetrovsk National University, 13 Naukova St., 49050 Dniepropetrovsk, Ukraine
²Lebedev Physical Institute, 53 Leninsky Ave., 119991 Moscow, Russia

download full version

Angular dependences of Bragg reflection spectra for the bare and infiltrated synthetic opal photonic crystals of Ba(NO3)2 have been studied in the wavelength range of 420–630 nm for the geometry of specular reflection and the incidence angles 5^o, 20^o, 30^o and 45^o. Theoretical relation between the diffracted light wavelengths at the maximum reflectance and the angle of incidence has been used and compared with the experimental one. The distance between (111) planes of opal and the diameter of silica globules have been determined. Angular distribution of diffuse reflection has been measured in the vicinity of direction of specular reflection.

PACS: 42.25.Gy, 78.20.Ci, 78.40.-q

Key words: photonic crystals, synthetic opal photonic crystals, complete photonic forbidden gap, reflection spectra, Bragg light diffraction.

doi 10.3116/16091833/7/2/58/2006

1. Bykov VP, 1972. Soviet Physics JETP 35: 269.
2. Yablonovitch E, 1987. Phys. Rev. Lett. 58: 2059.
        doi:10.1103/PhysRevLett.58.2059 http://dx.doi.org/10.1103/PhysRevLett.58.2059
3. John S, 1987. Phys. Rev. Lett. 58: 2486.
        doi:10.1103/PhysRevLett.58.2486 http://dx.doi.org/10.1103/PhysRevLett.58.2486
4. Baryshev AV, Kaplyanskii AA, Kosobukin VA, Limonov MF, Samusev KB and Usvyat DE, 2003. Solid State Phys. 45: 434.
5. Astratov V N, Bogomolov VN, Kaplyanskii AA, Prokofiev AV, Samoilovich LA, Samoilovich SM, and Vlasov YuA, 1995. Nuovo Cimento D 17: 1349.
        doi:10.1007/BF02457208 http://dx.doi.org/10.1007/BF02457208
6. Bogomolov VN, Gaponenko SV, Germanenko IN, Kapitonov AM, Petrov EP, Gaponenko NV, Prokofiev AV, Ponyavina AN, Silvanovich NI, and Samoilovich SM, 1997. Phys Rev. E 55: 7619.
7. Romanov SG, Johnson NP, Fokin AV, Butko VY and Sotomayor Torres CM, 1997. Appl. Phys. Lett.70: 2091.
        doi:10.1063/1.119081 http://dx.doi.org/10.1063/1.119081
8. Wijnhoven J, and Vos WL, 1998. Science 281: 802.
        doi:10.1126/science.281.5378.802 http://dx.doi.org/10.1126/science.281.5378.802
9. Bogomolov VN, Prokofiev AV and Shelyh AI, 1998. Solid State Phys. 40: 648.
10. Reynolds A, Lopez-Tejeira F, Cassagne D, Garcia-Vidal FJ, Jouanin C and Sanchez-Dehesa J, 1999. Phys. Rev. B 60: 422.
        doi:10.1103/PhysRevB.60.422 http://dx.doi.org/10.1103/PhysRevB.60.422
11. Thijssen MS, Sprik R, Wijnhoven JJ, Megens M, Narayanan T, Lagendijk A and Vos WL, 1999. Phys. Rev. Lett. 83: 2730
        doi:10.1103/PhysRevLett.83.2730 http://dx.doi.org/10.1103/PhysRevLett.83.2730
12. Miguez H, Blanco A, Meseduer F, Lopez C, Yates HM, Pemble ME, Fornes V and Mifsud A, 1999. Phys. Rev. B 59: 1563.
        doi:10.1103/PhysRevB.59.1563 http://dx.doi.org/10.1103/PhysRevB.59.1563
13. Blanco A, Chomski E, Grabtchak S, Ibsate M, John S, Leonard SW, Lopez C, Meseguer F, Miduez H, Mondia JP, Ozin GA, Toader O and van Driel HM,     2000. Nature 405: 437.
        doi:10.1038/35013024 http://dx.doi.org/10.1038/35013024
14. Huang J, Eradat N, Raikh ME, Vardeny ZV Zakhidov AA and Baughman RH, 2001. Phys. Rev. Lett. 86: 4815.
        doi:10.1103/PhysRevLett.86.4815 http://dx.doi.org/10.1103/PhysRevLett.86.4815
15. Vlasov YuA, Astratov VN, Baryshev AV, Kaplyanskii AA, Karimov OZ and Limonov MF, 2000. Phys. Rev. E 61: 5784.
16. Maslov VM, Samarov EN, Volkodav GI, Emelchenko GA, Bazhenov AV, Bozhko SI, Karpov IA, Grusintsev AN and Yaakimov EE, 2004. Physics and Techniques of Semiconductors 38: 884.

Errata
        Podolskyy D.S., Moiseyenko V.N., Gorelik V.S. and Shvachich V.G. Ukr.J.Phys.Opt. 7 (2006) p.58-62.
        Page 58. Instead title “Reflection Spectra of and Infiltrated Synthetic Opal Photonic Ba(NO3)2 Crystals”
        Should be: ”Reflection Spectra of Bare and Infiltrated with Ba(NO3)2 Synthetic Opal Photonic Crystals”
