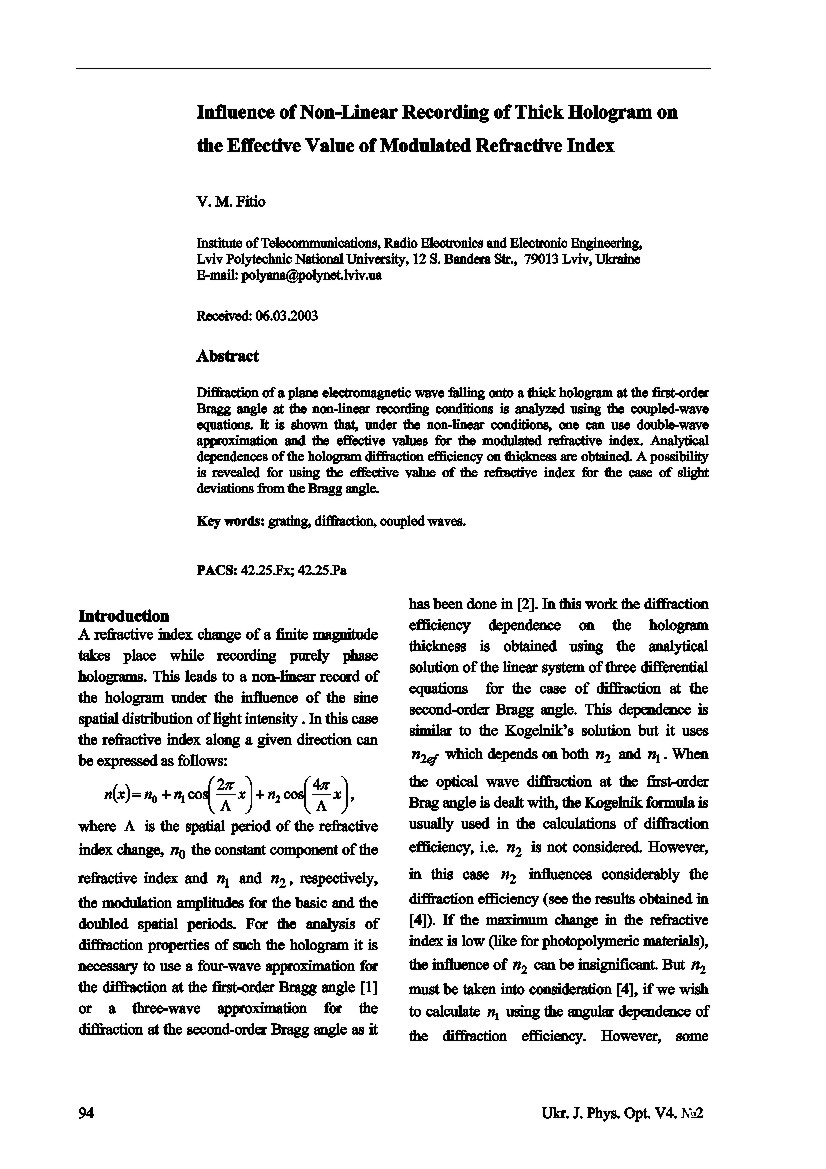

Influence of Non-Linear Recording of Thick Hologram on
the Effective Value of Modulated Refractive Index
Fitio V.M.
Institute of Telecommunications, Radio Electronics and
Electronic Engineering, Lviv Polytechnic National University, 12 S. Bandera
Str., 79013 Lviv, Ukraine
download full version
Diffraction of a plane electromagnetic wave falling onto a thick hologram
at the first-order Bragg angle at the non-linear recording conditions is
analyzed using the coupled-wave equations. It is shown that, under the
non-linear conditions, one can use double-wave approximation and the effective
values for the modulated refractive index. Analytical dependences of the
hologram diffraction efficiency on thickness are obtained. A possibility
is revealed for using the effective value of the refractive index for the
case of slight deviations from the Bragg angle.
Key words: grating, diffraction, coupled waves.
PACS: 42.25.Fx; 42.25.Pa
doi 10.3116/16091833/4/2/94/2003 |
|
1. Solymar L, Cooke DJ, 1981. Volume Holography and Volume Gratings, Academic
Press, London New York, Toronto.
2. Zhao G, Mouroulis P, 1995. Opt. Commun. 115: 528-532.
doi:10.1016/0030-4018(95)00051-9
http://dx.doi.org/10.1016/0030-4018(95)00051-9
3. Kogelnik H, 1969. Bell Syst. Tech. J. 48: 2909-2947.
4. Fitio VM, 2000. Proc. SPIE 4448: 34-42.
doi:10.1117/12.388461
http://dx.doi.org/10.1117/12.388461
5. Indutnyy IZ, Kostyshin MT, Kasyrum OP, et al, 1992. Photo–stimulation
interaction in structure metal-semiconductor, Kiyev: Scient. Th..
6. Zyubrik AI, Vinnik DM, Gorbal MM, Trofimovich KK, 1980. Collection
of the scientific works. Moscow, MHGSE RSSF.
7. Yariv A, Yeh P, 1984. Optical Waves in Crystals, A Wiley-Interscience
Publication. John Wiley & Sons, New York.
8. Landau LD, Lifshic YeM, 1959. Electrodynamics of solid state, Moscow,
Nat.Publ.Phys.-Mat. Lit.
9. Moharam MG, Jong L, 1978. Appl. Opt. 17: 1975-1979. |
