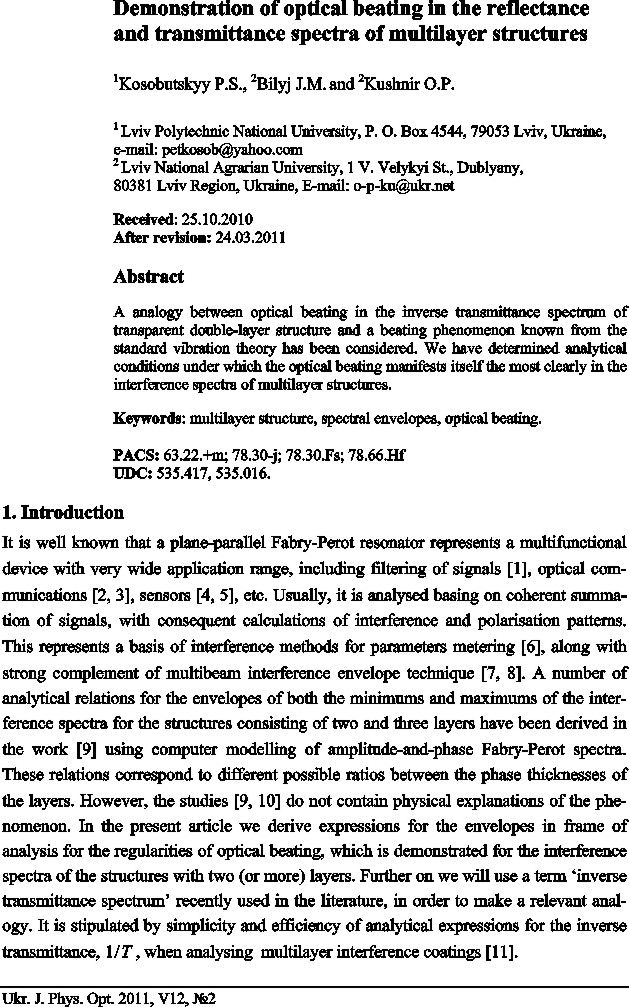

Demonstration of optical beating in the reflectance and transmittance spectra of multilayer structures
Download this article

Kosobutskyy P.S., Bilyj J.M. and Kushnir O.P.

A analogy between optical beating in the inverse transmittance spectrum of transparent double-layer structure and a beating phenomenon known from the standard vibration theory has been considered. We have determined analytical conditions under which the optical beating manifests itself the most clearly in the interference spectra of multilayer structures.

Keywords: multilayer structure, spectral envelopes, optical beating.

PACS: 63.22.+m; 78.30-j; 78.30.Fs; 78.66.Hf
UDC: 535.417, 535.016.
Ukr. J. Phys. Opt. 12 89-100
doi: 10.3116/16091833/12/2/89/2011
Received: 25.10.2010
After revision: 24.03.2011

Анотація. Представлено аналогію між оптичним биттям в обернених спектрах пропускання прозорої двошарової структури і явищем биття, відомим з теорії коливань. Визначено умови, за яких оптичне биття найчіткіше виявляється в інтерференційних спектрах для багатошарової структури.
