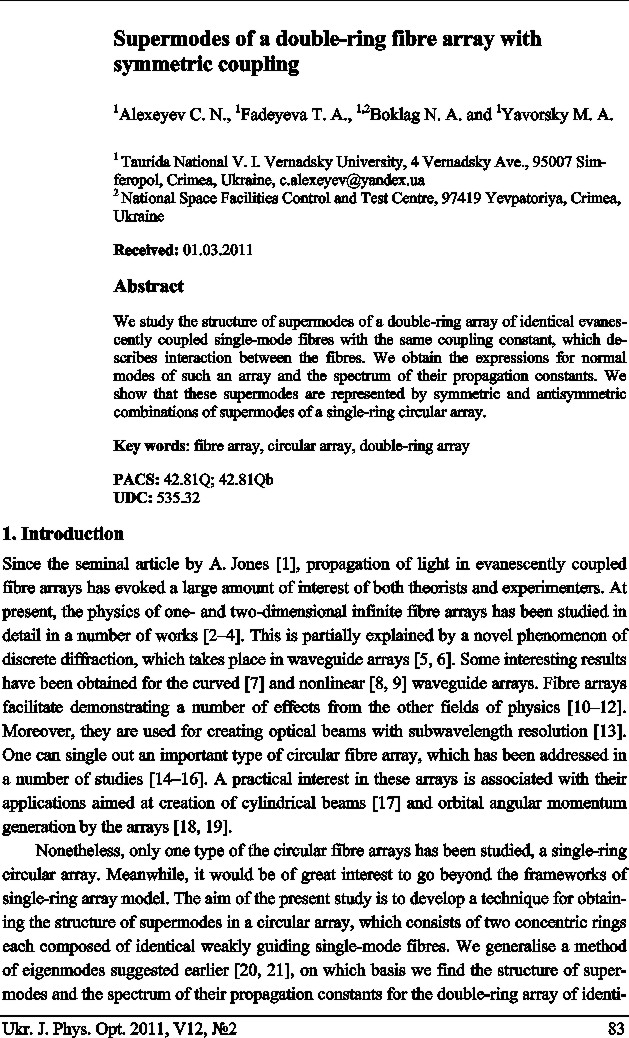

Supermodes of a double-ring fibre array with symmetric coupling
Download this article

Alexeyev C. N., Fadeyeva T. A., Boklag N. A. and Yavorsky M. A.

We study the structure of supermodes of a double-ring array of identical evanescently coupled single-mode fibres with the same coupling constant, which describes interaction between the fibres. We ob-tain the expressions for normal modes of such an array and the spectrum of their propagation con-stants. We show that these supermodes are represented by symmetric and antisymmetric combinations of supermodes of a single-ring circular array.

Keywords: fibre array, circular array, double-ring array

PACS: 42.81Q; 42.81Qb
UDC: 535.32
Ukr. J. Phys. Opt. 12 83-88 doi: 10.3116/16091833/12/2/83/2011
Received: 01.03.2011

Анотація. Досліджено структуру супермод двокільцевого джгута ідентичних, радіаційно зв’язаних одномодових волокон з однаковим значенням константи зв’язку, що описує взаємодію між волокнами. Отримано вираз для нормальних мод цього джгута і спектр констант поширення. Показано, що його супермоди можна представити симетричною та антисиметричною ком-бінацією супермод однокільцевого круглого джгута..
