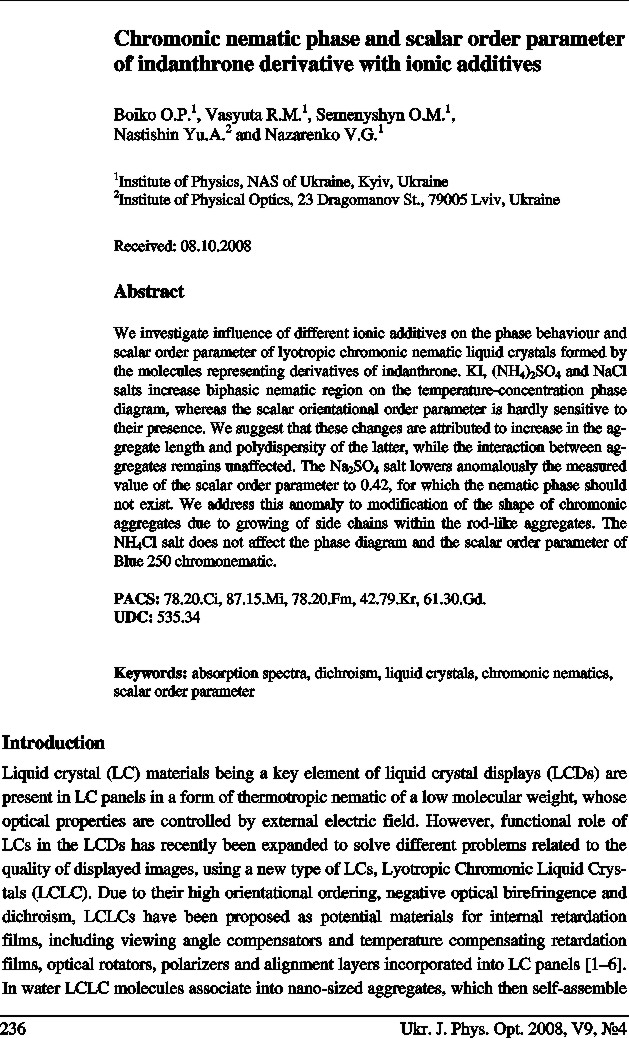

Chromonic nematic phase and scalar order parameter of indanthrone derivative with ionic additives
1Boiko O.P., 1Vasyuta R.M., 1Semenyshyn O.M., 2Nastishin Yu.A., 1Nazarenko V.G.

1Institute of Physics, NAS of Ukraine, Kyiv, Ukraine
2Institute of Physical Optics, 23 Dragomanov St., 79005 Lviv, Ukraine

download full version

We investigate influence of different ionic additives on the phase behaviour and scalar order parameter of lyotropic chromonic nematic liquid crystals formed by the molecules representing derivatives of indanthrone. KI, (NH4)2SO4 and NaCl salts increase biphasic nematic region on the temperature-concentration phase diagram, whereas the scalar orientational order parameter is hardly sensitive to their presence. We suggest that these changes are attributed to increase in the ag-gregate length and polydispersity of the latter, while the interaction between ag-gregates remains unaffected. The Na2SO4 salt lowers anomalously the measured value of the scalar order parameter to 0.42, for which the nematic phase should not exist. We address this anomaly to modification of the shape of chromonic aggregates due to growing of side chains within the rod-like aggregates. The NH4Cl salt does not affect the phase diagram and the scalar order parameter of Blue 250 chromonematic.

Keywords:

PACS:  78.20.Ci, 87.15.Mi, 78.20.Fm, 42.79.Kr, 61.30.Gd.
UDC : 535.34
Ukr. J. Phys. Opt. 9 236-246
doi: 10.3116/16091833/9/4/236/2008
Received: 08.10.2008
REFERENCES
  1. Sergan T, Schneider T, Kelly J and Lavrentovich O D, 2000. Polarizing alignment layers for twisted nematic cells. Liquid Crystal 27: 567-572.

    2. doi:10.1080/026782900202390
  2. Bobrov Y, Cobb C, Lazarev P, Bos P, Bryand D and Wonderly H, 2000. Lyotropic Thin Film Polarizers. SID, Int. Symp. Digest of Technical Papers, Long Beach, California May 16–18, XXXI: 1102–1107.
  3. Wip W C, Kwok H S, Kozenkov V M and Chigrinov V G, 2001. Photopatterned e-wave polarizer. Displays 22: 27-32. doi:10.1016/S0141-9382(01)00051-8
  4. Boiko O, Komarov O, Vasyuta R, Nazarenko V, Slominskiy Yu and Schneider T, 2005. Nano-Architecture of Self-Assembled Monolayer and Multilayer Stacks of Lyotropic Chromonic Liquid Crystalline Dyes. Mol.Cryst.Liq.Cryst., 434: 305 - 314.

    5. doi:10.1080/15421400590955019
  5. Boiko O P, Vasyuta R M, Nazarenko V G, Pergamenshchik V M, Nastishin Yu A and Lavrentovich O D, 2007. Polarizing Properties of Functional Optical Films Based on Lyotropic Chromonic Liquid Crystals. Mol. Cryst. Liq. Cryst. 467: 181–194.

    6. doi:10.1080/15421400701221443
  6. Lavrentovich M, Sergan T and Kelly J, 2003. Planar and twisted lyotropic chromonic liquid crystal cells as optical compensators for twisted nematic displays. Liquid Crystal 30: 851-859.

    7. doi:10.1080/0267829031000121017
  7. Lydon J, 1998. in Handbook of Liquid Crystals, ed. by Demus D, Goodby J, Gray G W, Spiess H-W, and Vill-Wiley V, Weinheim: VCH, 2B: 981–1007.
  8. Lydon J, 1998. Chromonic liquid crystal phases. Current opinion in colloid & interface science. 3: 458-466.
  9. Lydon J, 2004. Chromonic mesophases. Current opinion in colloid & interface science. 8: 480-490.

    10. doi:10.1016/j.cocis.2004.01.006
  10. Vasilevskaya A S., Generalova E V. and Sonin A S, 1989. Chromonic Mesophases. Russ. Chem. Rev. 58: 904-916. doi:10.1070/RC1989v058n09ABEH003486
  11. Camorani P, Furier M, Kachkovskii O, Piryatinskiy Yu, Slominskiy Yu and Nazarenko V, 2001. Absorption spectra and chromonic phase in aqueous solution of perylenetetracarboxylic bisimides derivatives. Semicond. Phys., Quantum Electron. Optoelectron. 4: 229-238.
  12. Nastishin Yu A, Liu H, Schneider T, Nazarenko V, Vasyuta R, Shiyanovskii S V and Lavrentovich O D, 2005. Optical characterization of the nematic lyotropic chromonic liquid crystals: light absorption, birefringence, and scalar order parameter. Phys. Rev. E 72: 041711.

    13. doi:10.1103/PhysRevE.72.041711
  13. Vasyuta R, Boiko O, Piryatinskiy Yu, Nazarenko V and Kachkovsky A, 2005. Absorption and Fluorescence Spectra of Aqueous Solutions of Disodium Chromoglycate. Mol. Cryst. Liq. Cryst., 426: 117–127.

    14. doi:10.1080/15421400590890831
  14. Nastishin Yu A, Liu H, Shiyanovskii S V, Lavrentovich O D, Kostko A F and Anisimov M A, 2005. Pretransitional fluctuations in the isotropic phase of a lyotropic chromonic liquid crystal. Phys. Rev. E 70: 051706.

    15. doi:10.1103/PhysRevE.70.051706
  15. Horowitz V R, Janowitz L A, Modic A L, Heiney P A and Collings P J, 2005. Aggregation behavior and chromonic liquid crystal properties of an anionic monoazo dye. Phys. Rev. E 72: 041710.

    16. doi:10.1103/PhysRevE.72.041711
  16. Harrison W J, Mateer D L and Tiddy G T, 1996. Liquid-Crystalline J-Aggregates Formed by Aqueous Ionic Cyanine Dyes. J. Phys. Chem. 100: 2310-2314.

    17. doi:10.1021/jp952532l
  17. Andrei F Kostko, Bani H Cipriano, Olga A Pinchuk, Lior Ziserman, Mikhail A Anisimov, Dganit Danino and Srinivasa R Raghavan, 2005. Salt Effects on the Phase Behavior, Structure, and Rheology of Chromonic Liquid Crystals. J. Phys. Chem. B 109: 19126-19133.

    18. doi:10.1021/jp045083a
  18. Lee H and Labes M M, 1982. Lyotropic Cholesteric and Nematic Phases of Disodium Cromoglycate in Magnetic Fields. Mol. Cryst. Liq. Cryst. 84: 137-157.

    19. doi:10.1080/00268948208072137
  19. Yu L J, Saupe A, 1982. Deuteron Resonance of D2O of Nematic Disodium Cromoglycate-Water Systems Mol. Cryst. Liq. Cryst. 80: 129-134. doi:10.1080/00268948208071026
  20. Perahia D, Goldfarb D, and Luz Z, 1984. Sodium-23 NMR in the lyomesophases of disodiumcromoglicate. Mol. Cryst. Liq. Cryst. 108: 107-123. doi:10.1080/00268948408072101
  21. Mundy K, Sleep J C and Lydon J E, 1995. The intercalation of ethidium bromide in the chromonic lyotropic phases of drugs and nucleic acids. Liq. Cryst. 19: 107-112.

    22. doi:10.1080/02678299508036726
  22. Park H S, Tortora L, Vasyuta R M, Golovin A B, Augustin E, Finotello D and Lavrentovich O D, 2007. Lyotropic Chromonic Liquid Crystals: Effects of Additives and Optical Applications. IMID '07, Digest of Technical Papers, 307-310.
  23. Hartshorne N H and Woodard G D, 1973. Mesomorphism in the system disodium-chromoglicate – water. Mol. Cryst. Liq. Cryst. 23: 343-368. doi:10.1080/15421407308083381
  24. Taylor M P and Herzfeld J, 1991. Shape anisotropy and ordered phases in reversibly assembling lyotropic systems. Phys. Rev. A 43: 1892-1905. doi:10.1103/PhysRevA.43.1892PMid:9905230
  25. Barrat J L and Hansen J P, Basic Concepts for Simple and Complex Liquids. New York: Cambridge-University Press, (2003).
  26. MacKintosh F C, Safran S A and Pincus P A, 1990. Self-Assembly of Linear Aggregates: the Effect of Electrostatics on Growth . J. Phys.: Condens. Matter 2: SA359-364.

    27. doi:10.1088/0953-8984/2/S/056
  27. Speranza A and Sollich P J, 2002. Onsager theory for isotropic nematic phase equilibria of length polydisperse hard rods. J.Chem. Phys. 117: 5421-5436.

    28. doi:10.1063/1.1499718
  28. Wensink H H and Vroege G J, 2003. Isotropic-nematic phase behavior of length-polydisperse hard rods. J. Chem. Phys. 119: 6868-6882. doi:10.1063/1.1599277
