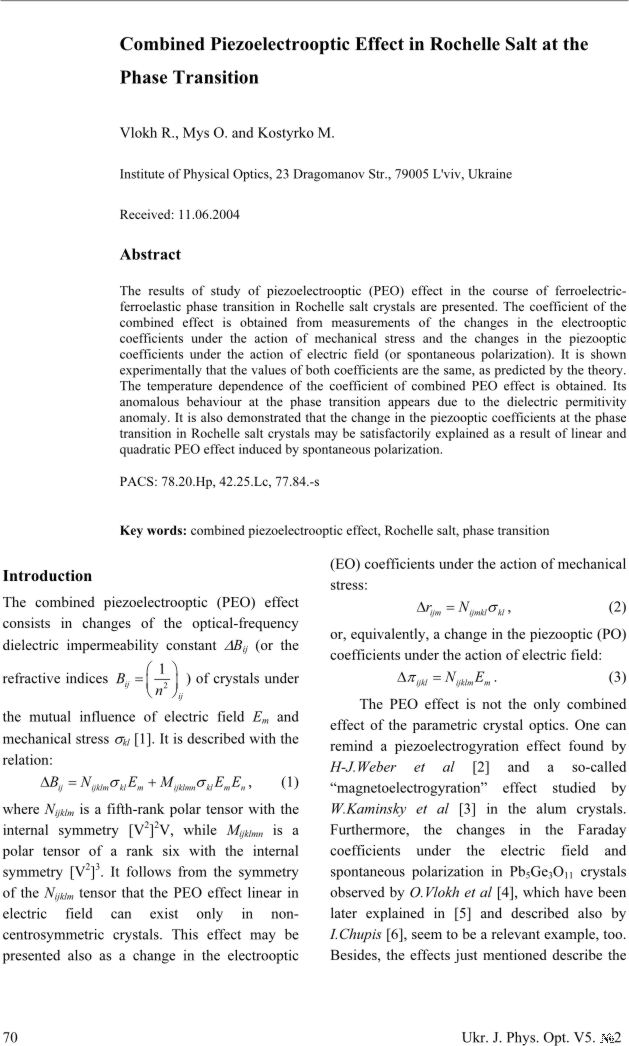

Combined Piezoelectrooptic Effect in Rochelle Salt at
the Phase Transition
Vlokh R., Mys O., Kostyrko M.
Institute of Physical Optics, 23 Dragomanov Str., 79005
L'viv, Ukraine
download full version
The results of study of piezoelectrooptic (PEO) effect in the course
of ferroelectric-ferroelastic phase transition in Rochelle salt crystals
are presented. The coefficient of the combined effect is obtained from
measurements of the changes in the electrooptic coefficients under the
action of mechanical stress and the changes in the piezooptic coefficients
under the action of electric field (or spontaneous polarization). It is
shown experimentally that the values of both coefficients are the same,
as predicted by the theory. The temperature dependence of the coefficient
of combined PEO effect is obtained. Its anomalous behaviour at the phase
transition appears due to the dielectric permitivity anomaly. It is also
demonstrated that the change in the piezooptic coefficients at the phase
transition in Rochelle salt crystals may be satisfactorily explained as
a result of linear and quadratic PEO effect induced by spontaneous polarization.
PACS: 78.20.Hp, 42.25.Lc, 77.84.-s
Key words: combined piezoelectrooptic effect, Rochelle salt, phase
transition
doi 10.3116/16091833/5/2/70/2004 |
|
1. Vlokh R, Mys O, Kostyrko M, 2002. Ukr. J. Phys. Opt. 3: 277.
doi:10.3116/16091833/3/4/277/2002
http://dx.doi.org/10.3116/16091833/3/4/277/2002
2. Weber H-J, Balashova EV, Kizhaev SA, 2000. J. Phys.: Condens. Matter.
12: 1485.
doi:10.1088/0953-8984/12/7/329
http://dx.doi.org/10.1088/0953-8984/12/7/329
3. Kaminsky W, Fahnenstich A, Haussuhl S, 1992. Ann. Physik 1: 92.
4. Vlokh O, Sergatyuk V, 1987. Bulletin Acad. Sci. USSR 51: 2183.
5. Vlokh OG, Vlokh RO, 1990. Opt. Spektrosk. 69: 458.
6. Chupis IE, 1997. Physics of low temperatures 23: 290.
7. Mys O, Vlokh R, 2001. Ukr. J. Phys. Opt. 2: 187.
doi:10.3116/16091833/2/4/187/2001
http://dx.doi.org/10.3116/16091833/2/4/187/2001
8. Berezhnoy IV, Vlokh RO, 1988. Soviet Phys.: Sol. State 30: 2223.
9. Zheludev IS, 1968. Physics of crystalline dielectrics. Moscow “Nauka”.
10. Sirotin YI, Shaskolskaya MP, 1979. Fundamentals of crystal physics
Nauka, Moscow .
11. Zheludev IS, 1973. Fundamentals of ferroelectricity. Moscow, Atomizdat.
12. Jona F, Shirane G, 1962. Ferroelectric crystals. Pergamon Press,
Oxford-London-New-York- Paris. |
