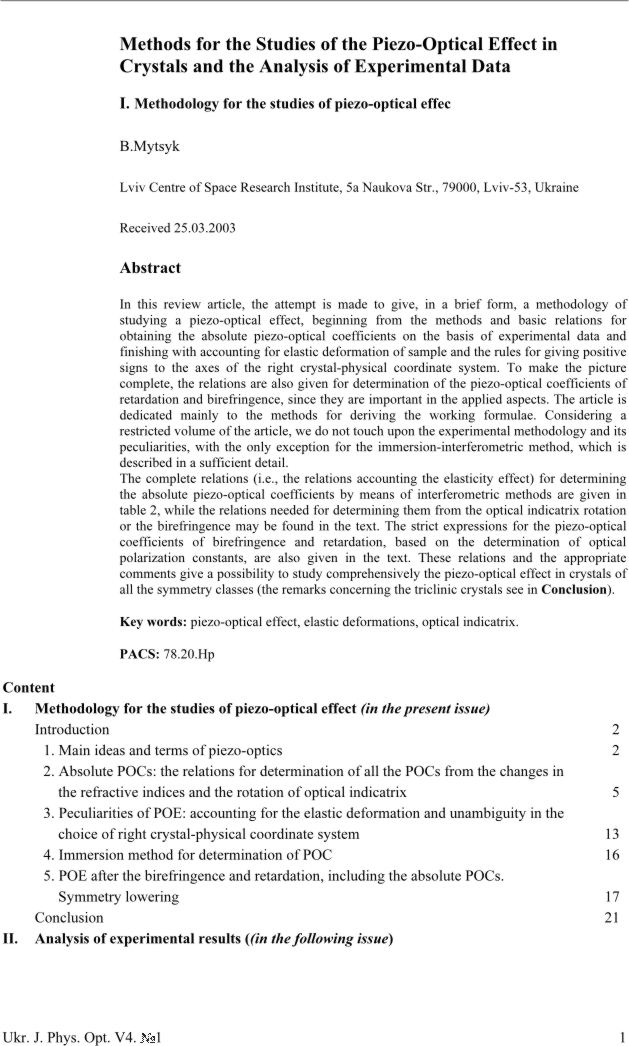

Methods for the Studies of the Piezo-Optical Effect in Crystals and the Analysis of Experimental Data.
I. Methodology for the studies of piezo-optical effect
Mytsyk B.

Lviv Centre of Space Research Institute, 5a Naukova Str., 79000, Lviv-53, Ukraine

download full version

In this review article, the attempt is made to give, in a brief form, a methodology of studying a piezo-optical effect, beginning from the methods and basic relations for obtaining the absolute piezo-optical coefficients on the basis of experimental data and finishing with accounting for elastic deformation of sample and the rules for giving positive signs to the axes of the right crystal-physical coordinate system. To make the picture complete, the relations are also given for determination of the piezo-optical coefficients of retardation and birefringence, since they are important in the applied aspects. The article is dedicated mainly to the methods for deriving the working formulae. Considering a restricted volume of the article, we do not touch upon the experimental methodology and its peculiarities, with the only exception for the immersion-interferometric method, which is described in a sufficient detail.
The complete relations (i.e., the relations accounting the elasticity effect) for determining the absolute piezo-optical coefficients by means of interferometric methods are given in table 2, while the relations needed for determining them from the optical indicatrix rotation or the birefringence may be found in the text. The strict expressions for the piezo-optical coefficients of birefringence and retardation, based on the determination of optical polarization constants, are also given in the text. These relations and the appropriate comments give a possibility to study comprehensively the piezo-optical effect in crystals of all the symmetry classes (the remarks concerning the triclinic crystals see in Conclusion).

Key words: piezo-optical effect, elastic deformations, optical indicatrix.
PACS: 78.20.Hp

doi 10.3116/16091833/4/1/1/2003

1. Narasimhamurty TS, 1981.Photoelastic and electro-optic properties of crystals. Plenum Press. New York and London.
2. Pockels F,1906. Lehrbuch der Kristallooptik. Druck und Verlag von B.G.Teubner. Leipzig-Berlin.
3. Mytsyk BH, Ostapyuk VV, 1990. Preprint Inst. Teoret. Fiz. ITPh-90-15R. Kyiv 28.
4. Mytsyk BH, Andrushchak AS, 1993. Ukr.J.Phys. 38: 1015.
5. Syrotin Yu.I., Shaskolskaya M.P. Fundamentals of Crystal Physics. Nauka. Moscow (1979), 640.
6. Romanyuk MO, Mytsyk BH, Kulyk LM, 1986. Ukr. J. Phys. 31: 354.
7. Romanyuk MO, Mytsyk BH, 1988. Eksperim. Devices Techn. 1: 171.
8. Pockels F, 1889. Ann. Phys. III-37: 372.
9. Sonin AS, Vasylevskaya AS, 1971. Electro-optic crystals. Atomizdat. Moscow.
10. Bakhvalov SV, Babushkin LI, Ivanitskaya VP, 1970. Analytic geometry. Prosveshcheniye. Moscow.
11. Nye JF, 1964. Physical properties of crystals. Oxf. Univ. Press. London.
12. Aleksandrov PS, 1979. Course of analytic geometry and linear algebra. Nauka. Moscow.
13. Mytsyk BH., Kotsur SS, Ostapyuk VV, 1987. Preprint Inst. Teoret. Fiz. ITPh-87-98R. Kyiv, 28 .
14. Vlokh OG, 1965. Ukr. J. Phys. 10: 76.
15. Mytsyk BH, Romanyuk MO, Ostapyuk VV, 1992. Crystallography Reports 37: 531.
16. Mytsyk BH, Osyka BV, Andrushchak AS, Petrushko RS, 1990. Bulletin of Acad. Sci. USSR 54: 1150.
17. Ivanov NR, Shuvalov LA, 1977. Bulletin of Acad. Sci. USSR 41: 654.
18. Andrushchak AS, Bobytskyi YaV, Hnatyk BI, et al, 2002. Bulletin of Nat. Univ. “Lvivs’ka Politechnika” (ser. Electronics) 455: 110.
19. Mytsyk BH, Andrushchak AS, 1990. Crystallography Reports. 35: 1574.
20. Mytsyk BH, Pryriz YaV, Andrushchak AS, 1991. Cryst. Res. Technol. 26: 931.
21. Mytsyk BH, Demyanyshyn NM, Yakovleva LM, et al, 1993. Crystallography Reports. 38: 239.
22. Mytsyk BH, Karnaukh BM, Ostapyuk VV, Skab IP, 1987. Optic of anisotropic media. Moscow 149.
23. Andrushchak AS, Mytsyk BH, Romashko VA, Seglinsh YaA, 1991. Ukr. J. Phys. 36: 618.
24. Nosenko AYe, Mytsyk BH, 1987. Crystallography Reports. 32: 1037.
25. Borovyk-Romanov AS, Kraynek MN, Paches Ya, 1979. J. Exper. Theor. Phys. 77: 2477.
26. Vlokh O.G. KaminskyiB.V., Polovynko I.I., Sveleba S.A. Dielectrics and semiconductors. Kyiv. 33 (1988) 13.
27. Mytsyk B.H., Romanyuk M.O. Ukr. J. Phys. 28 (1983) 538 (in Ukrainian).
28. Romanyuk M.O., Mytsyk B.H. Optics of anisotropic media. Moscow (1985) 155 (in Russian).
29. Mueller H. Pys. Rev. 58 (1940) 805.
30. Vedam K. et al. Mater. Rev. 4 (1969) 573.
31. Vedam K., Schneider W.C. J. Appl. Phys. 43 (1972) 3623.
32. Vedam K., Hennessey P. J. Opt. Soc. Am. 65 (1975) 442.
