Combined Piezoelectrooptical Effect in
LiNbO3 and LiTaO3 Crystals
Vlokh R., Mys O., Andrushchak A., Kostyrko M.
Institute of Physical Optics 23 Dragomanov Str., 79005,
L’viv, Ukraine

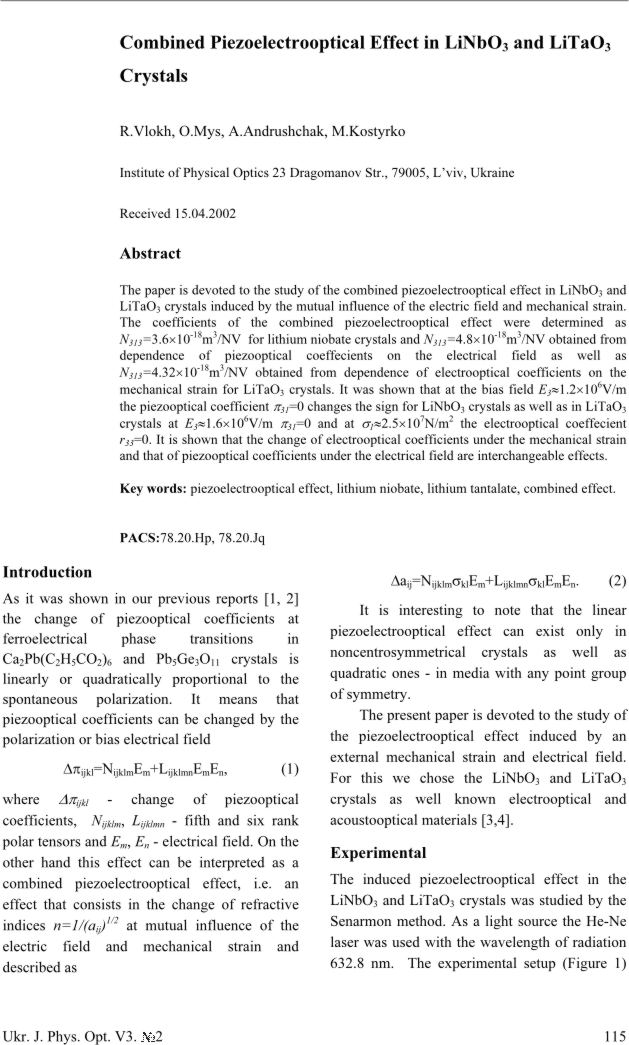

download full version
The paper is devoted to the study of the combined piezoelectrooptical
effect in LiNbO3 and LiTaO3 crystals induced by the mutual influence of
the electric field and mechanical strain. The coefficients of the combined
piezoelectrooptical effect were determined as N313=3.6*10-18m3/NV
for lithium niobate crystals and N313=4.8*10-18m3/NV
obtained from dependence of piezooptical coeffecients on the electrical
field as well as N313=4.32*10-18m3/NV obtained from
dependence of electrooptical coefficients on the mechanical strain for
LiTaO3 crystals. It was shown that at the bias field E3=1.2*106V/m
the piezooptical coefficient P31=0 changes the sign for LiNbO3
crystals as well as in LiTaO3 crystals at E3=1.6*106V/m p31=0
and at s1=2.5*107N/m2 the electrooptical
coeffecient r33=0. It is shown that the change of electrooptical coefficients
under the mechanical strain and that of piezooptical coefficients under
the electrical field are interchangeable effects.
Key words: piezoelectrooptical effect, lithium niobate, lithium tantalate,
combined effect.
PACS:78.20.Hp, 78.20.Jq
doi 10.3116/16091833/3/2/115/2002 |
|
